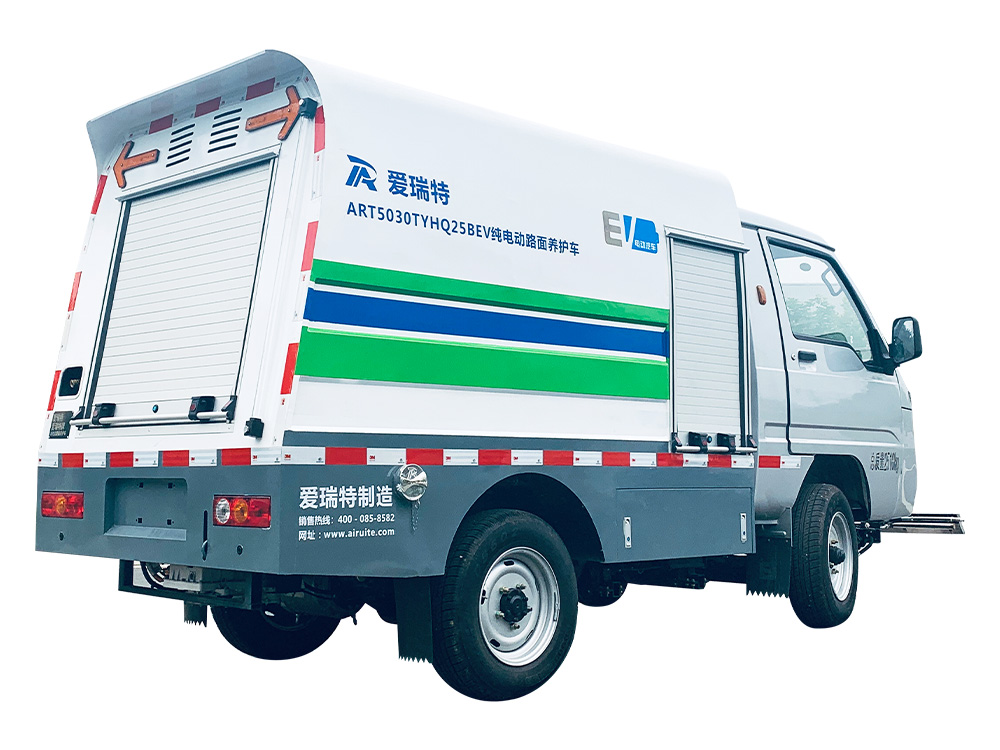

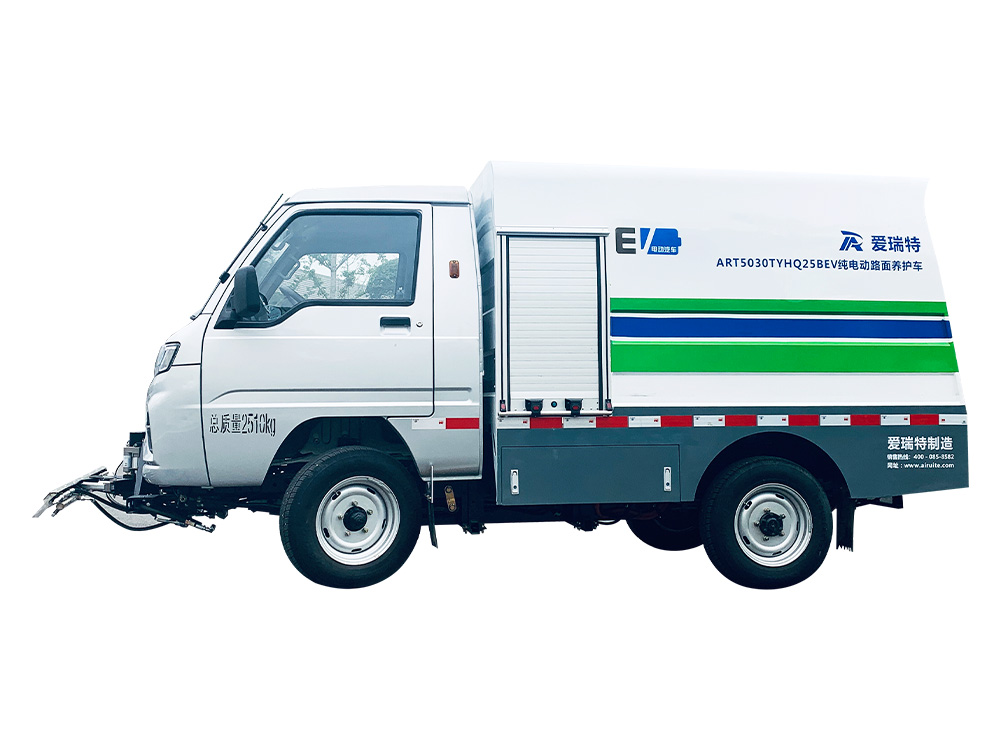

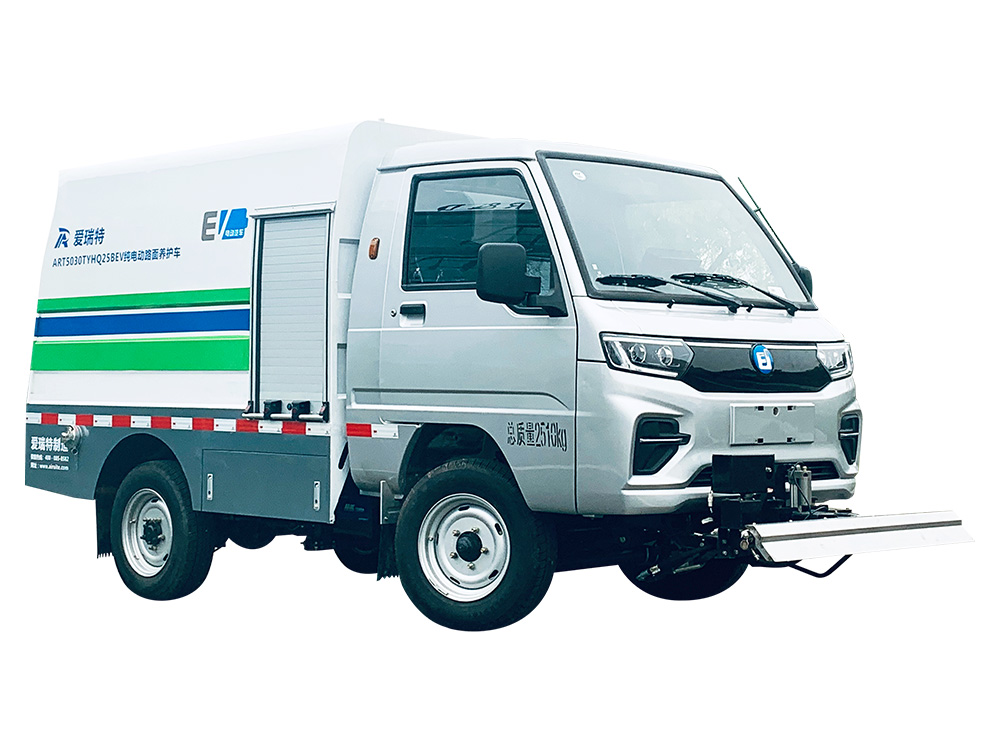

Ruibao Q25 pure electric road maintenance vehicle

< >

Field of application

Art530tyhq25bev pure electric road maintenance vehicle is mainly used for washing and maintenance of motorway, non motorway, sidewalk, back street alley, municipal garden, property community and other roads. The lower left and right side flushing can be combined with the sweeper, and the front high-pressure flushing and multi angle flushing device is used to clean the dirt and urban psoriasis at the road surface, road teeth and traffic sign lines. At the same time, it is suitable for garden medicine, and the rear washing cart, washing site and high-pressure water gun can be used to wash and maintain the sections where vehicles are inconvenient to stop.

Product highlights

◆ box body: high-quality high-strength steel plate. The three sides of the box body adopt curtain box doors for fire engines, which is atmospheric and beautiful;

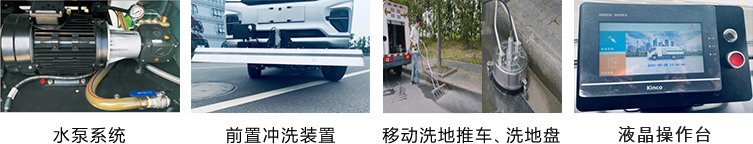

◆ flushing system: front high-pressure flushing, rear floor washing cart, washing site and high-pressure water gun;

◆ water pump system: compound excitation brushless DC motor cooperates with AR high-voltage water pump, with stable performance; Honda gasoline engine can be selected.

Product function

瑞保Q25純電動路面養護車

technical parameter
ParametersART5030TYHQ25BEV Pure electric road maintenance vehicle
Chassis model / brandDLP1030BEVT01/De Shuai brand
Total mass2510kg
Curb weight1760kg
Wheelbase2000mm
Battery brandBoat voyage
Battery capacity41.16kWh
Range>255km(Working condition method)
Maximum speed90km/h
Gradient≥20%
Turning radius≤5m
Water tank volume1.2m3
Front spray bar cleaning width1.5m
Hedge cleaning width10m
Pump flow(L/min )30L/min
Pump pressure(Mpa)0~25Mpa
Overall Dimension (L × W × H)4345×1575×2070mm
