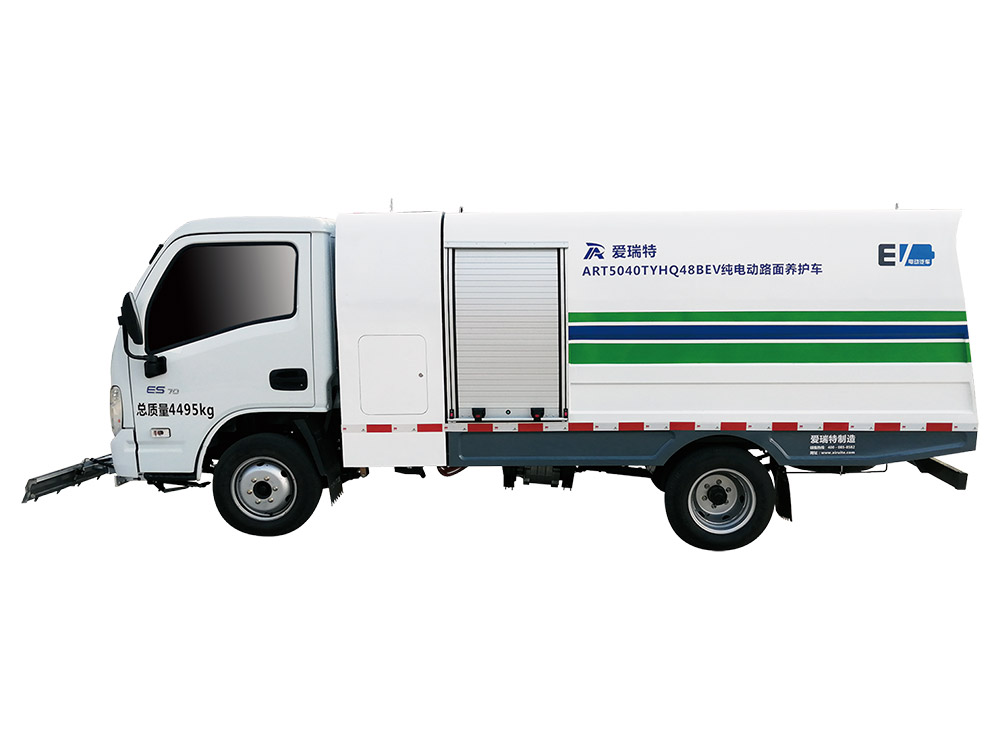

ART5040TYHQ48BEV Pure electric road maintenance vehicle is mainly used for washing and maintenance of motorway, non motorway, sidewalk, back street lane, municipal garden, property community and other roads. The front high-pressure flushing and multi angle flushing device is used to clean the dirt and urban psoriasis on the road surface, road teeth and traffic sign line. It is also suitable for garden medication, rear washing cart, washing site and high-pressure water gun. It can wash the road sections where the maintenance vehicles are inconvenient to stop.

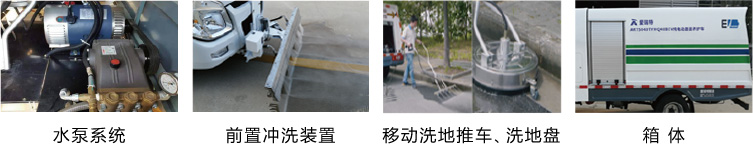

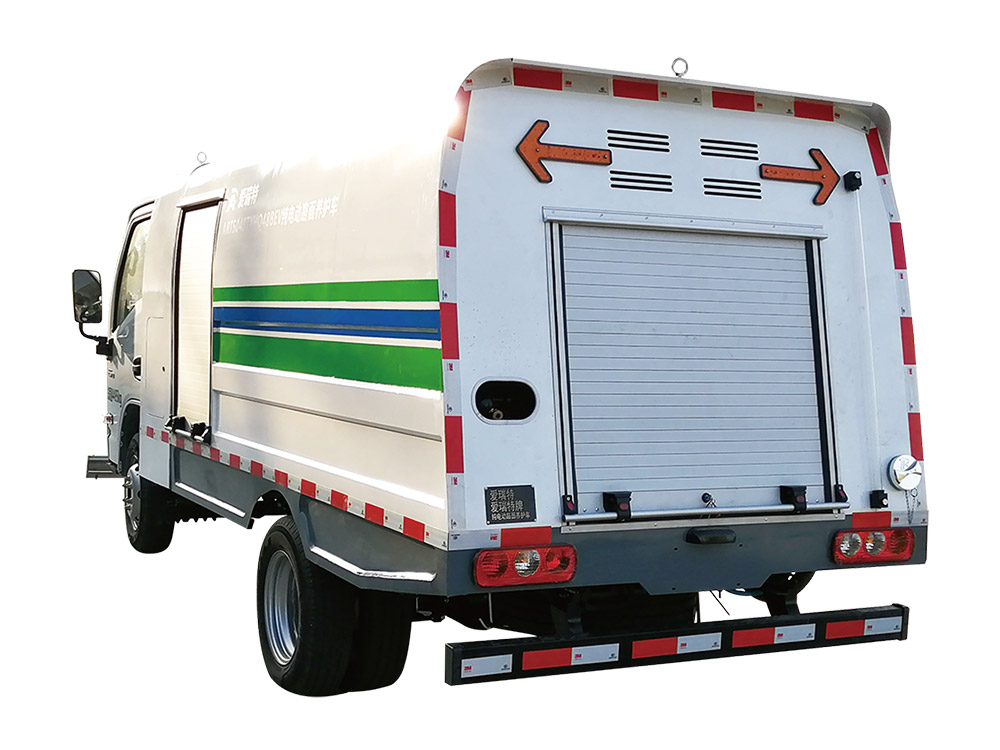

◆ Box: high quality high-strength steel plate, three sides of the box are curtain type box doors for fire trucks, which are divided into storage tank, water tank and operation device cabin, with beautiful atmosphere;

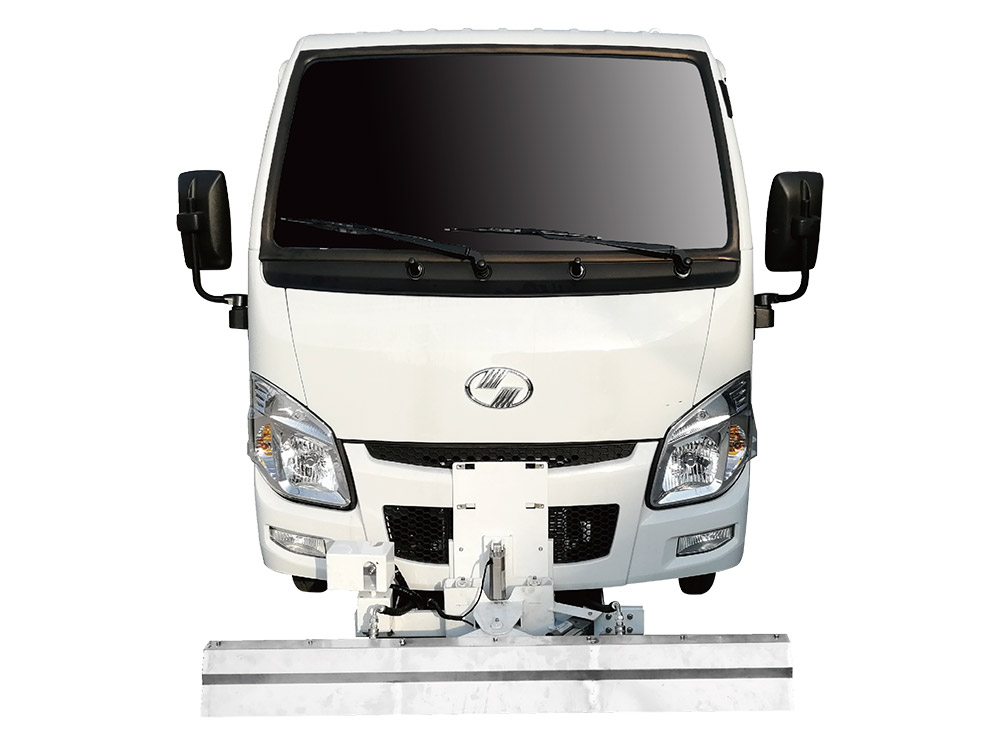

◆ flushing system: lower side flushing, front high pressure discharge and multi angle flushing device, and rear washing cart, washing site and high pressure water gun;
◆ Water pump system: compound excitation brushless DC motor with large flow and high pressure water pump imported from Italy, stable performance.
| Parameters | ART5040TYHQ48BEV Pure electric road maintenance vehicle |
| Chassis model / brand | SH1047PCEVNZ/Leap forward |
| Total mass | 4495kg |
| curb weight | 2720kg |
| wheelbase | 2850mm |
| Battery brand | Ningde times (LiFePO4) |
| Battery capacity | 66.84kWh |
| Maximum speed | 90km/h |
| Maximum climbing gradient | 20% |
| Minimum turning radius | 5.7m |
| Volume of water tank | 2.2m3 |
| Cleaning width of front spray bar | 1.5m |
| Offset cleaning width | 12m |
| Pump flow | 30L/min |
| Pump pressure | 0~25Mpa |
| Overall dimension (L × w × h) | 5830×1650×2140mm |
