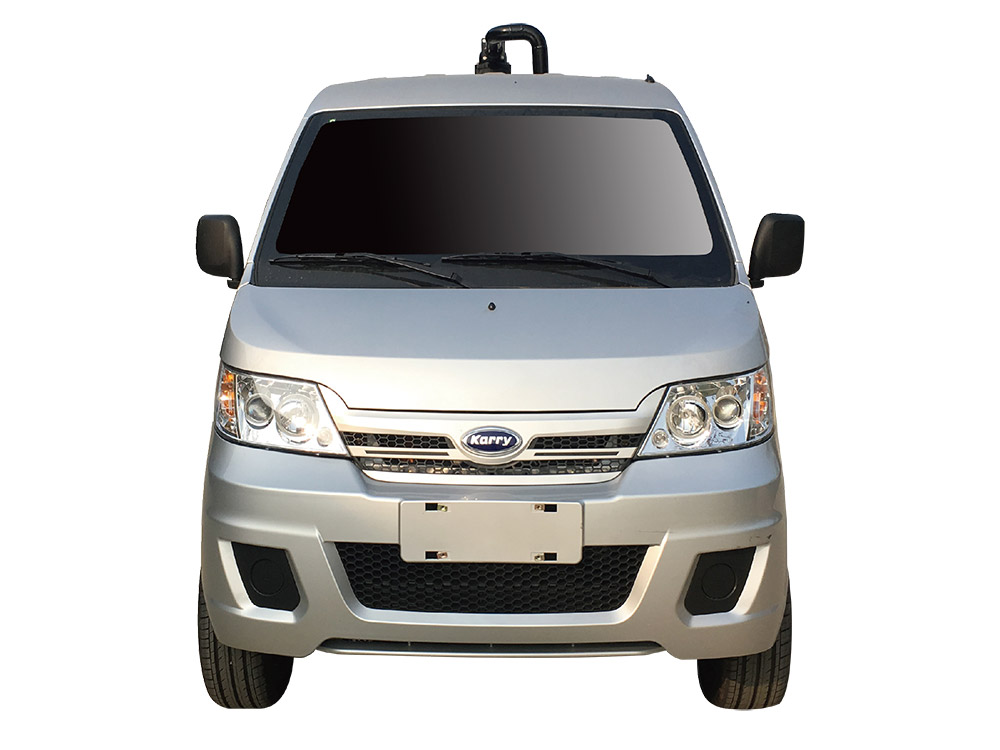

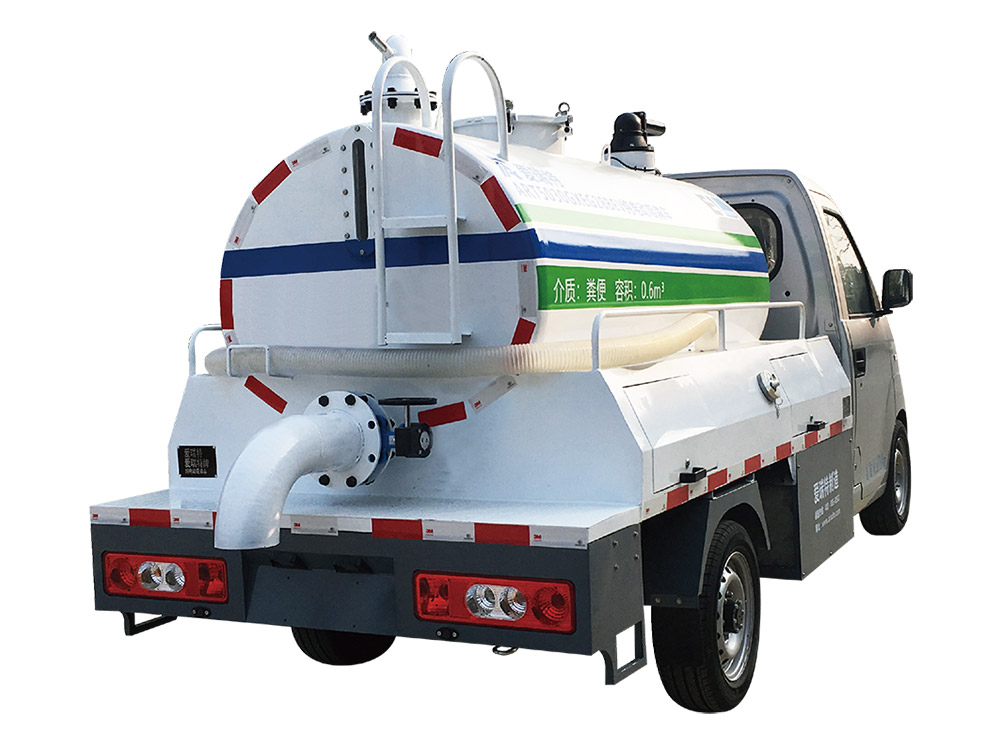

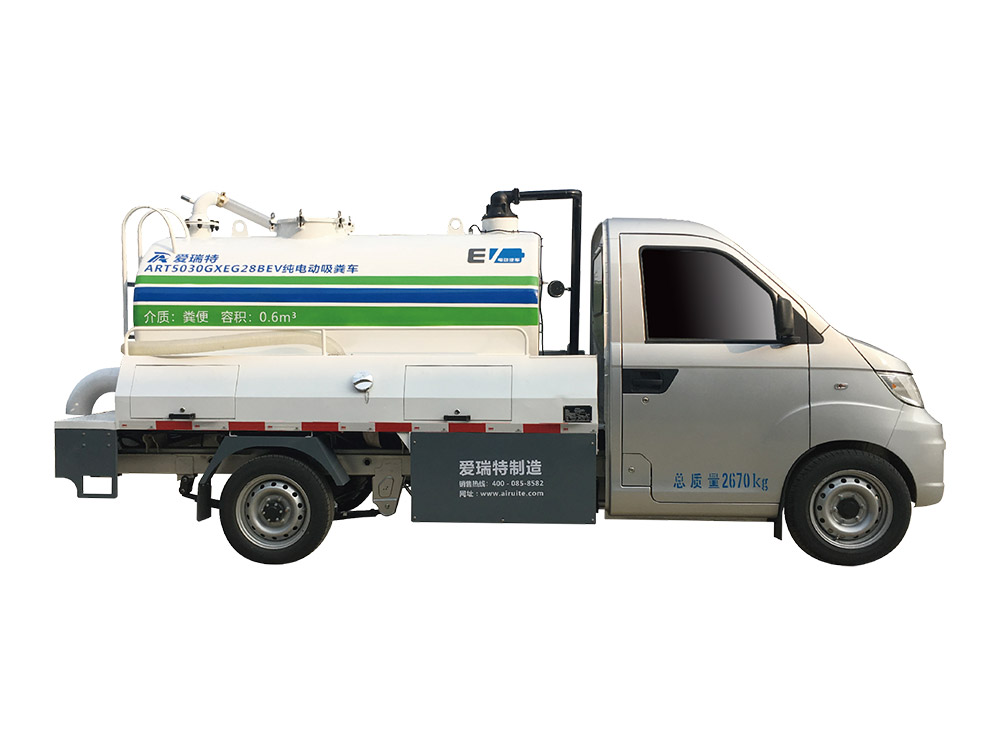

ART5030GXEG28BEV Pure electric suction truck is mainly used for pumping sewage, sludge, septic tank and liquid mixed with small suspended debris in villages and towns, property communities, institutions, scenic spots, factories and mining enterprises. Pure electric operation has low cost and zero emission
◆ tank body: high quality high strength steel plate, electrophoresis rust proof treatment, corrosion resistance;
◆ suction system: adopt brand vacuum pump and AC asynchronous motor, connect with coupling, extract air from the suction tank, and make the tank body generate negative pressure. Then, the ◆ feces and sewage in the tank are transported to the suction tank through high-pressure hose, which is safe, stable and fast and convenient;
Clean water system: the carriage is additionally equipped with a clean water system, which is convenient for spraying and cleaning operation tools and external dirt of the carriage.
| Parameters | ART5030GXEG28BEV Pure electric manure suction truck |
| Chassis model / brand | SQR1032BEVH08-E/karry |
| Total mass | 2670kg |
| curb weight | 2080kg |
| wheelbase | 3050mm |
| Battery brand | GuoXuan hi tech (LiFePO4) |
| Battery capacity | 41.34kWh |
| Maximum speed | 105km/h |
| Maximum climbing gradient | 20% |
| Minimum turning radius | 6m |
| Tank volume | 0.6m3 |
| Maximum suction vacuum | -65Kpa |
| Suction depth | ≥5m |
| Tank dimensions (L × w × h) | 850×620×1700mm |
| Overall dimension (L × w × h) | 5245×1640×2150mm |
